Users Guide

Running BOLDQC

While you are welcome to install BOLDQC and all of its dependencies manually, using one of the prebuilt containers is the most reliable way to run BOLDQC. The remainder of this section will assume that you are running BOLDQC using an Apptainer/Singularity container.

Modes

BOLDQC is broken up into three modes: get, process, and tandem.

get

If you have followed the Tagging your scans section, the get mode can be used to automatically download your BOLD scans from your XNAT installation, and seamlessly convert them to BIDS

singularity run --pwd /sw/apps/boldqc boldqc.sif \
    get \
    --xnat-alias ${XNAT} \
    --label ${XNAT_SESSION_LABEL} \
    --bids-dir ${BIDS_DIR}

process

The process mode will run BOLDQC on a specific BOLD scan from a BIDS directory. You are only responsible for leading BOLDQC to your data by supplying the BIDS root directory --bids-dir, subject --sub, session --ses, and run --run

XNAT upload is optional

If you are not interested in uploading the final results to your XNAT installation, you may omit the --xnat-alias and --xnat-upload arguments.

singularity run --pwd /sw/apps/boldqc boldqc.sif \
    process \
    --sub ${BIDS_SUBJECT} \
    --ses ${BIDS_SESSION} \
    --run ${BIDS_RUN} \
    --bids-dir ${BIDS_DIR} \
    --xnat-alias ${XNAT} \
    --xnat-upload

tandem

The tandem mode simply runs the get and process modes in tandem

XNAT upload is optional

If you are not interested in uploading the final results to your XNAT installation, you may omit the --xnat-alias and --xnat-upload arguments.

singularity run --pwd /sw/apps/boldqc boldqc.sif \
    tandem \
    --xnat-alias ${XNAT} \
    --label ${XNAT_SESSION_LABEL} \
    --run ${BIDS_RUN} \
    --bids-dir ${BIDS_DIR} \
    --xnat-upload

XNAT Integration

Tagging your scans

The get mode of BOLDQC is able to pull your data down from an XNAT installation and convert the data directly to BIDS. For this to work, BOLDQC must have a way to automatically find your BOLD scans.

To identify your BOLD scans, you must set the scan type in XNAT. You can set the type using the Edit button located within the Actions box on the MR Session report screen, or automate this using the XNAT Scans API

Type	Example Series Description
BOLD	ABCD_fMRI_rest_noPMU

The image below displays an MR Session report page with populated types

Running the pipeline

To launch the BOLDQC pipeline from within XNAT, you should use the Run Containers > boldqc-session button located within the Actions box on the MR Session report page

I don't see the Run Containers menu

If you don't see the Run Containers menu, please refer to Setting up the container.

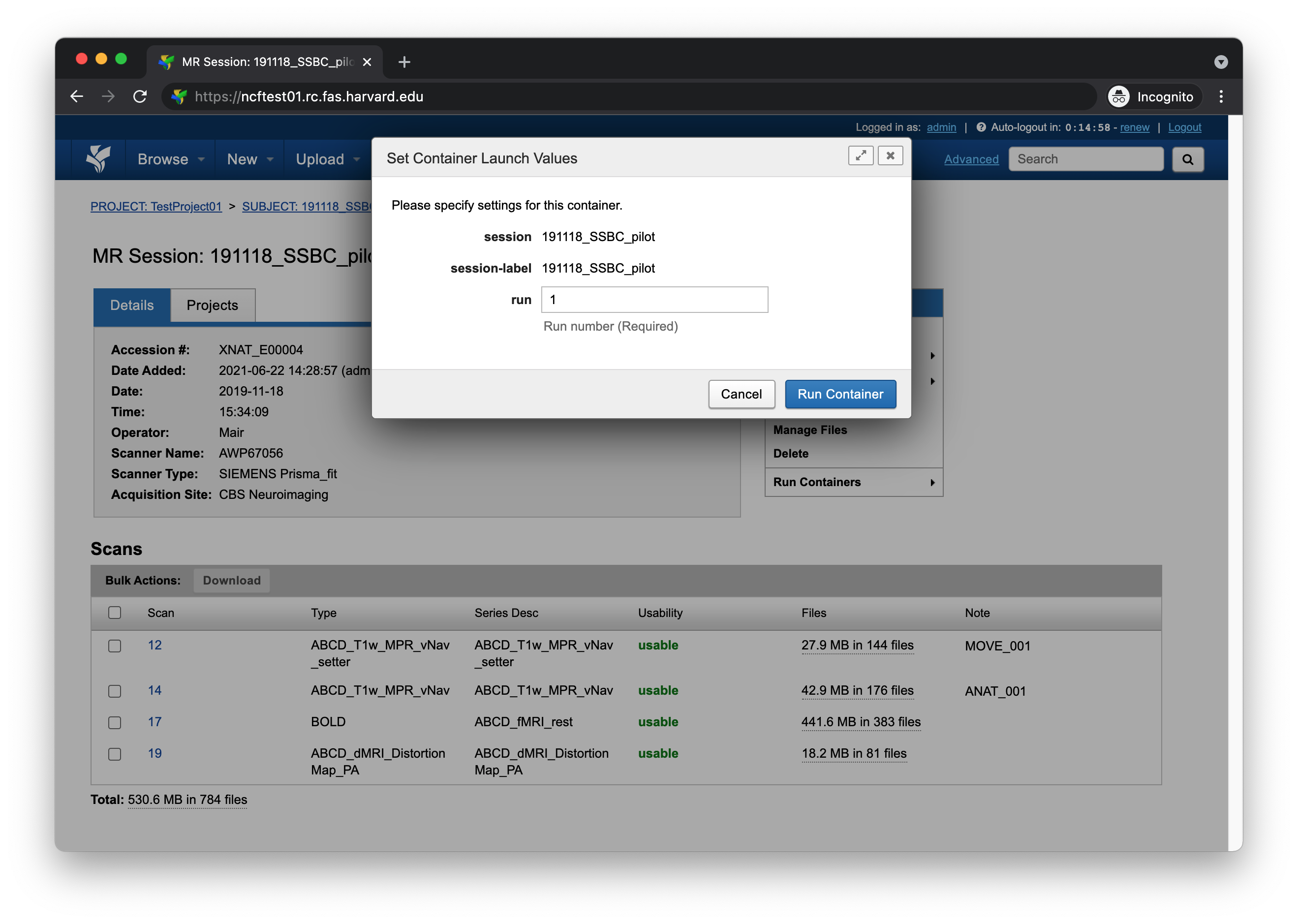

This should bring up a small dialog with several configurable options. You will find an overview of each setting under Container launch settings below.

Container launch settings

run

This should be set to the integer value of the BOLD scan you wish to process

Important note

The run number is not the scan number. If scan 17 was the first BOLD scan within the MR session, the run number would be 1, the second BOLD scan would be run 2, and so on.

BOLD scan	run
1st BOLD	1
2nd BOLD	2
3rd BOLD	3

Understanding the report page

The following section will break down each section of the BOLDQC report page.

Left pane

The left pane is broken up into several sections. Each section will be described below.

Summary

The Summary section orients the user to the MR Session they're currently looking at, in addition to various processing details

Key	Description
MR Session	MR Session label
Processed	Processing date
BOLD scan	Processed BOLD scan

Parameters

The Parameters section displays fine-grained scan information

Key	Description
Num Volumes	Number of time points
Num Voxels	Number of voxels included in the analysis
Mask Threshold	Masking threshold
Skip	Number of initial time points discarded

QC Metrics

The QC Metrics section displays quality control metrics computed over the entire 4-D volume

Metric	Description
Mean	Mean signal intensity
StDev	Mean voxel standard deviation
Slice SNR	Mean slice-based SNR (sensitive to motion)
Voxel SNR	Mean voxel SNR
Mean Rel Motion	Mean relative translations in 3D (mm)
Max Rel Motion	Maximum relative motion (mm)
Mean Abs Motion	Mean absolute motion in 3D (mm)
Max Abs Motion	Maximum absolute motion (mm)
Movements (>.1mm)	Number of relative translations in 3D > .1mm
Movements (>.5mm)	Number of relative translations in 3D > .5mm

Files

The Files section contains the most commonly requested files. Clicking on any of these files will display the file in the browser

File	Description
SNR Image	BOLD signal SNR image, axial
Mean Image	BOLD signal mean image, axial
StDev Image	BOLD signal standard deviation image, axial
Mask Image	Masked image
Mean Slice Image	BOLD signal mean slice intensity plot
Motion Data	Motion (translations and rotations) plot
Slope Image	BOLD signal slope image, axial
Auto QC Report	Automated QC report
Slice Report	Individual slice QC report

Tabs

To the right of the left pane, you'll find a tabbed container. The following section explains the contents of each tab.

Images

The Images tab displays mosaic views of the SNR, Mean, Standard Deviation, Slope, and Mask images. In addition to these, there are traditional plots for Mean Slice Intensity and Motion.

Clicking on any image within the Images tab should display a larger version of the image within the browser.

Automated QC

The Automated QC tab displays a complete list of BOLDQC quality control metrics.

Manual QC

The Manual QC tab contains a form allowing a quality control technician to record additional observations, comments, and assign a final PASS, WARN, or FAIL grade to the scan

All Stored Files

The All Stored Files tab contains a list of every file stored by BOLDQC. Clicking on any of these files will download the file

File	Description
*_EQC_auto_report.txt	Automated QC report
*_EQC_mask_thumbnail.png	Mask snapshot image
*_EQC_mask.nii.gz	Mask NIFTI
*_EQC_mean_thumbnail.png	Mean snapshot image
*_EQC_mean.nii.gz	Mean NIFTI
*_EQC_mean_slice.txt	Mean slice intensity data
*_EQC_mean_slice.png	Mean slice intensity plot
*_EQC_motion.png	Motion plot
*_EQC_slice_report.txt	Slice report
*_EQC_slope_thumbnail.png	Slope snapshot image
*_EQC_slope.nii.gz	Slope NIFTI
*_EQC_snr_thumbnail.png	SNR snapshot image
*_EQC_snr.nii.gz	SNR NIFTI
*_EQC_stdev_thumbnail.png	Standard deviation snapshot image
*_EQC_stdev.nii.gz	Standard deviation image
